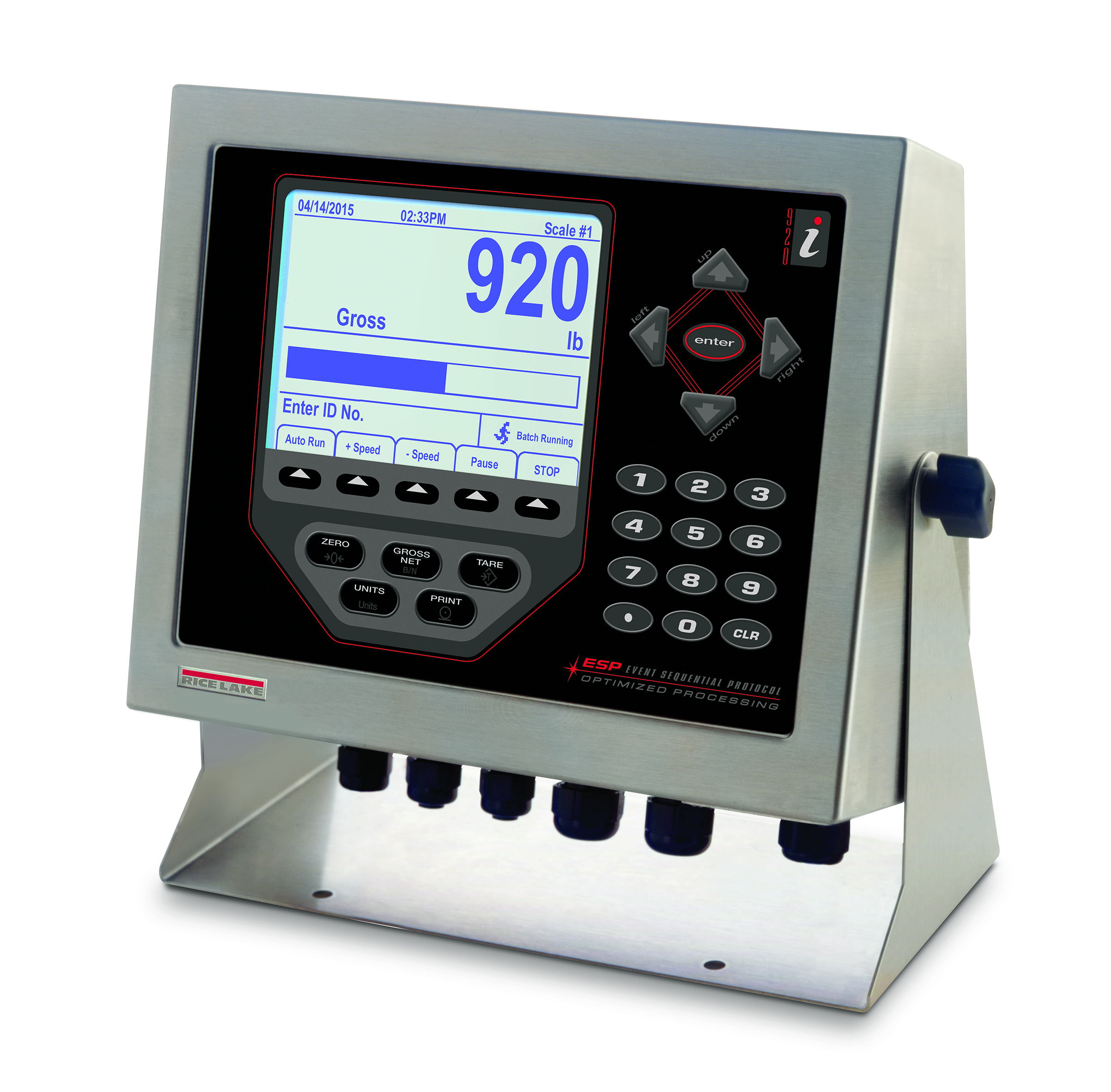

920i® Series Programmable Weight Indicator and Controller
- Large 4.6” W x 3.4” H, 320 x 240 pixel back-lit LCD graphical display
- Selectable character sizes from 0.25 in to 1.2 in
- Configurable (60) operator prompts and 256 widgets
- Display up to four scale channels per screen with required Legal for Trade information
- 32 scale accumulators
- Five displayed softkeys with 10 user-defined, 14 preset functions per screen
- Peak hold and rate of change
- Audit trail tracking and alibi storage
- Multiple range/interval weighing
- Four bidirectional communication ports
- Local/remote keypress operation
- Operator prompts/256 widgets
- Ten programmable display screens
- PS/2 or USB keyboard port for data entry
- Eight onboard databases
- Six onboard digital I/O and two onboard option card slots
- 100 configurable setpoints, 30 types
- 64 K user on-board NV RAM
- User programmable 128 K flash memory
- Reflash memory to upgrade firmware
- 1,000-ID truck registers for in/out weighing
- Programmable ticket formats and 20 auxiliary print formats
- 32 individual scale accumulators
- Millivolt calibration, five-point linearization and geographical calibration
- Selectable A/D measurement rate up to 960/second
- 100 setpoints, 30 configurable setpoint types
- Power for 16, 350-ohm load cells per A/D board
- iQUBE2® diagnostic connectivity
- NEMA Type 4X/IP66 stainless steel enclosure
Sales Literature
Flexibility. Power. Simplicity. It's all in the box.
The 920i® weight indicator and process controller blends revolutionary user interfaces, total flexibility and processing performance with the simplicity of a basic weight indicator. A crisp, highly customizable LCD graphical display, programmable softkeys and industry recognized electronics are surrounded by a virtually indestructible enclosure to create one of the industry’s most trusted weight indicators and process controllers.
Adding an entirely new dimension in flexibility for solution providers and users alike, the 920i indicator/controller brings simplified customization at a fraction of the cost of traditional process instrumentation. From tailored basic weighing to complex process automation, the 920i gives you features, programmability and power for your process.
920i Specifications
|
Power: Excitation Voltage: Analog Signal Input Range: Analog Signal Sensitivity: A/D Sample Rate: Resolution: |
System Linearity: Digital I/O: Communication Ports: Display: Keys/Buttons: |
Temperature Range: Weight: Rating/Material: Warranty: EMC Immunity: Approvals: |

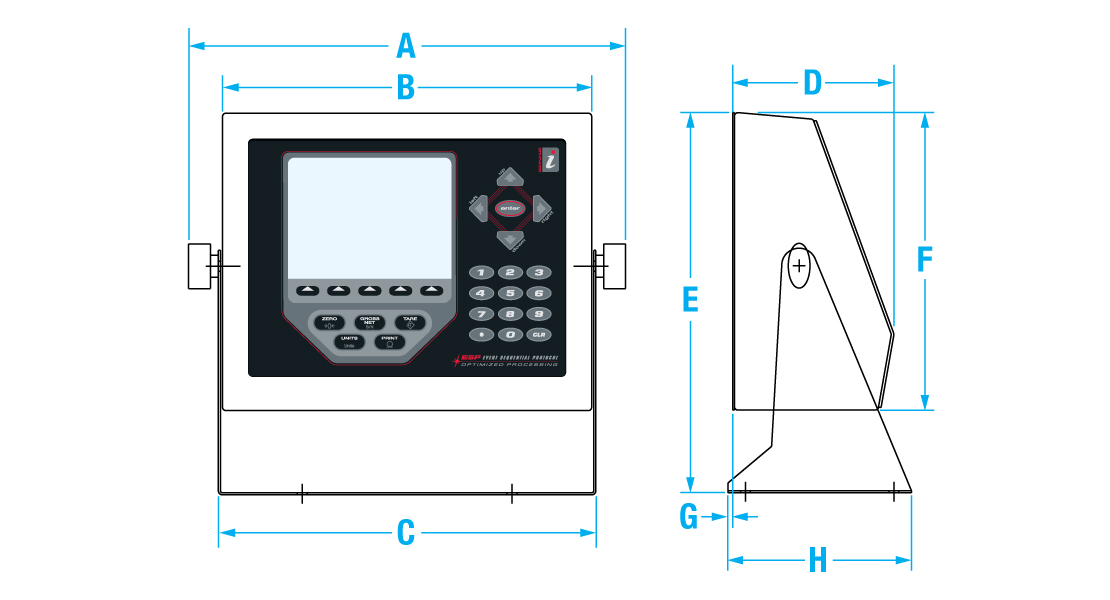

920i Universal Dimensions
| 920i Universal Dimensions | |||||
|---|---|---|---|---|---|
| A | 12.50 in (318 mm) | D | 4.61 in (117 mm) | G | 0.14 in (3.5 mm) |
| B | 10.56 in (268 mm) | E | 10.87 in (276 mm) | H | 5.25 in (206 mm) |
| C | 10.90 in (277 mm) | F | 8.50 in (216 mm) | ||

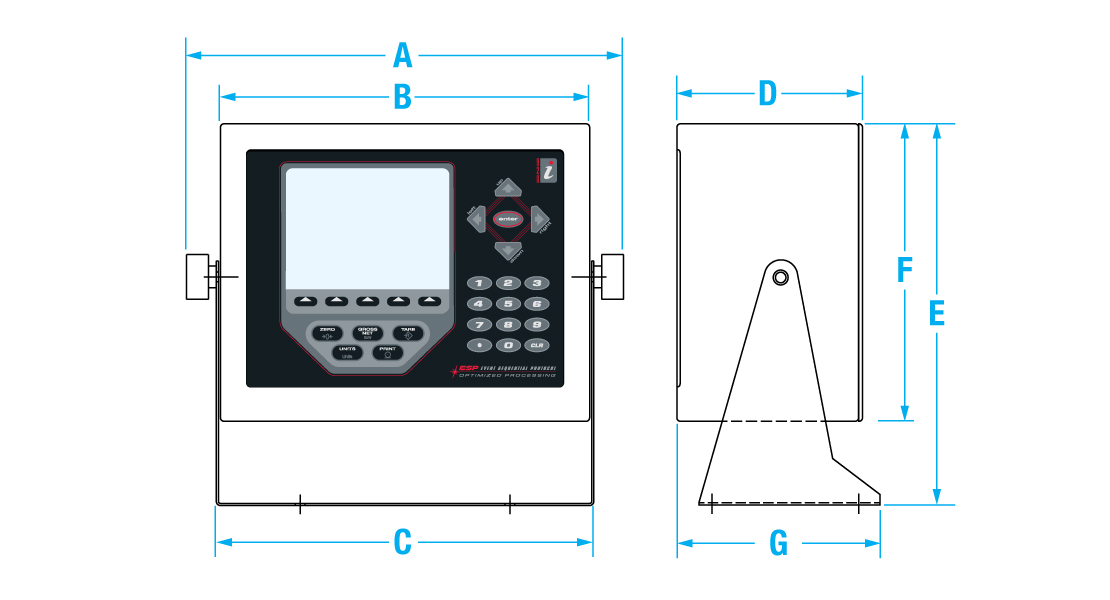

920i Deep Universal Dimensions
| 920i Deep Universal Dimensions | |||||
|---|---|---|---|---|---|
| A | 12.50 in (318 mm) | D | 5.36 in (216 mm) | F | 8.50 in (216 mm) |
| B | 10.76 in (273 mm) | E | 10.87 in (276 mm) | G | 5.88 in (149 mm) |
| C | 10.90 in (277 mm) | ||||

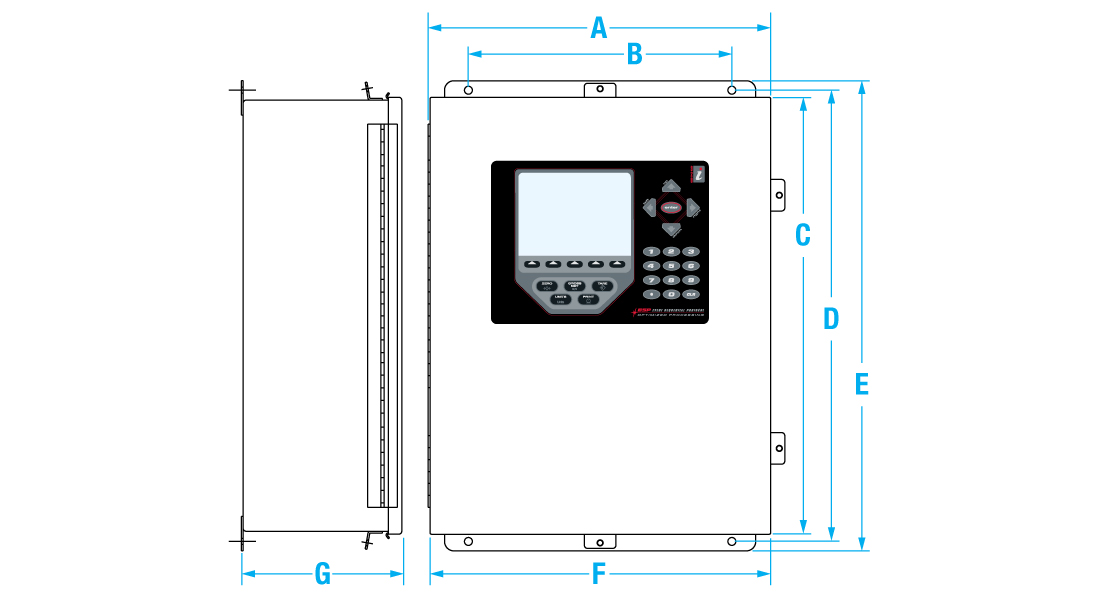

920i Wall Mount Dimensions
| 920i Wall Mount Dimensions | |||||
|---|---|---|---|---|---|
| A | 14.30 in (363 mm) | D | 18.84 in (479 mm) | F | 14.30 in (363 mm) |
| B | 11.00 in (279 mm) | E | 19.63 in (499 mm) | G | 6.75 in (171 mm) |
| C | 18.00 in (462 mm) | ||||

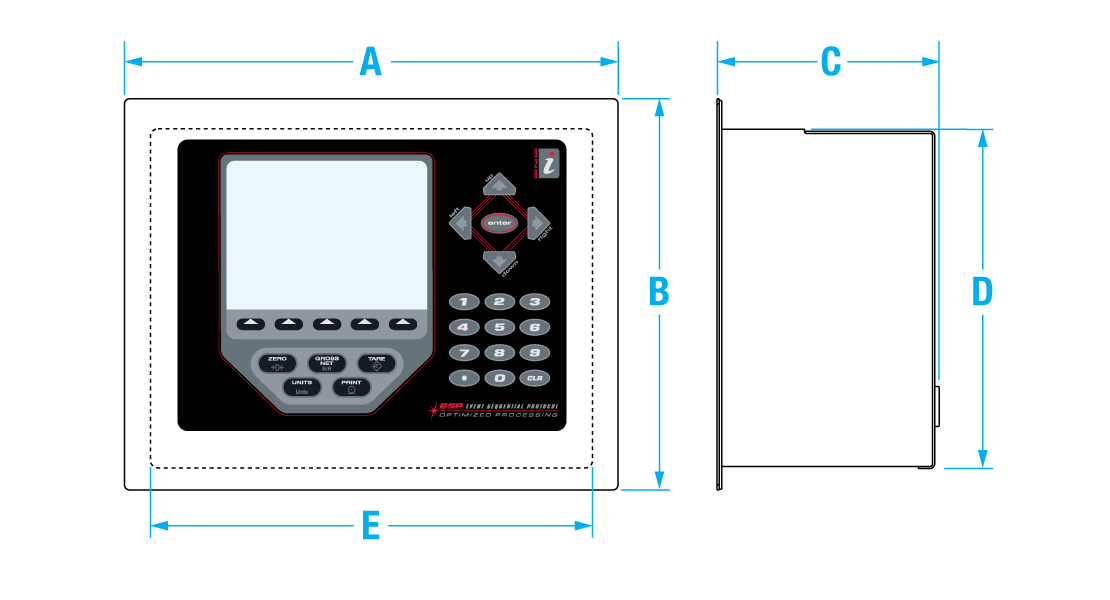

920i Panel Mount Dimensions
| 920i Panel Mount Dimensions | |||
|---|---|---|---|
| A | 11.56 in (294 mm) | C | 5.20 in (132 mm) |
| B | 9.16 in (233 mm) | D | 7.95 in (202 mm) |
