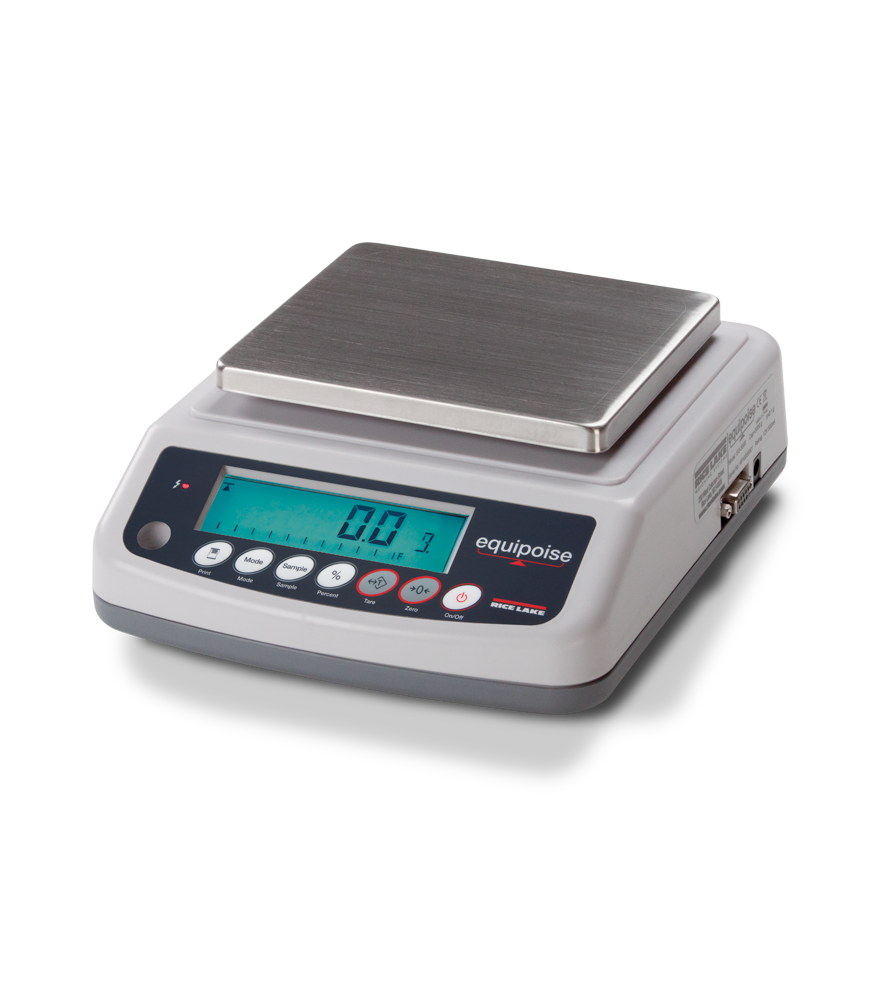

Equipoise Series Balance

The Equipoise Series balance is ideal for classrooms, laboratories and industrial applications. These seven-button balances allow quick access to 13 different units of measure, percentage, counting and accumulating.

A detachable enclosed weighing chamber is included in capacities below 1,000 grams. Equipoise can be used with the included AC adaptor or an onboard rechargeable battery that offers up to 40 hours of continuous operation. RS-232 output is standard on each model. RS-232 cable is optional.

Capacities between 300 g and 6,000 g
Internal resolution: 1/600,000
LCD display
Quick response
Accumulation, counting and percentage modes
13 different units of measure
Detachable enclosed weighing chamber (in capacities ≤1 kg)
Battery operation for up to 40 hours of continuous use (without backlight)
RS-232 interface for connecting to printer or PC
Plastic enclosure

Rice Lake Equipoise Series Specifications Table

	EQ-300^	EQ-600^	EQ-1500	EQ-3000	EQ-6000
Part #	165338	165339	165340	165341	165342
Capacity	300 g	600 g	1,500 g	3,000 g	6,000 g
Resolution	0.01 g	0.02 g	0.05 g	0.1 g	0.2 g
Weighing Units	Gram, Carat, Ounce, Ounce Troy, Pound, Pennyweight, Grain, Momme, Hong Kong Tael, Singapore Tael, Taiwan, Tael, Tola
Operating Modes	Weighing, Percent Weighing, Parts Counting, Accumulation
Repeatability (+/-)	0.01 g	0.02 g	0.05 g	0.1 g	0.2 g
Linearity (+/-)	0.02 g	0.04 g	0.1 g	0.2 g	0.4 g
Stabilization Time	2 seconds
Operating Temperature	32° F to 104° F (0° C to 40° C)
Weighing Chamber	6.7 x 5.7 x 3.1 in (170 x 145 x 80 mm)		N/A	N/A	N/A
Pan Size	Ø 4.7 in (Ø 120 mm)		4.8 in x 5.6 in (122 mm x 142 mm)
Dimensions	7.1 x 8.7 x 3.3 in (180 x 220 x 85 mm)
Weight (Approx.)	6.6 lb (3 kg)
Calibration Weight	300 g	600 g	1,500 g	3,000 g	6,000 g
Power	AC adapter (12V/500 mA); internal rechargeable battery (6V/1.2 Ah)
Warranty	One-year Limited Warranty
Return Policy	Rice Lake Standard Policy
^ Weighing Chamber
