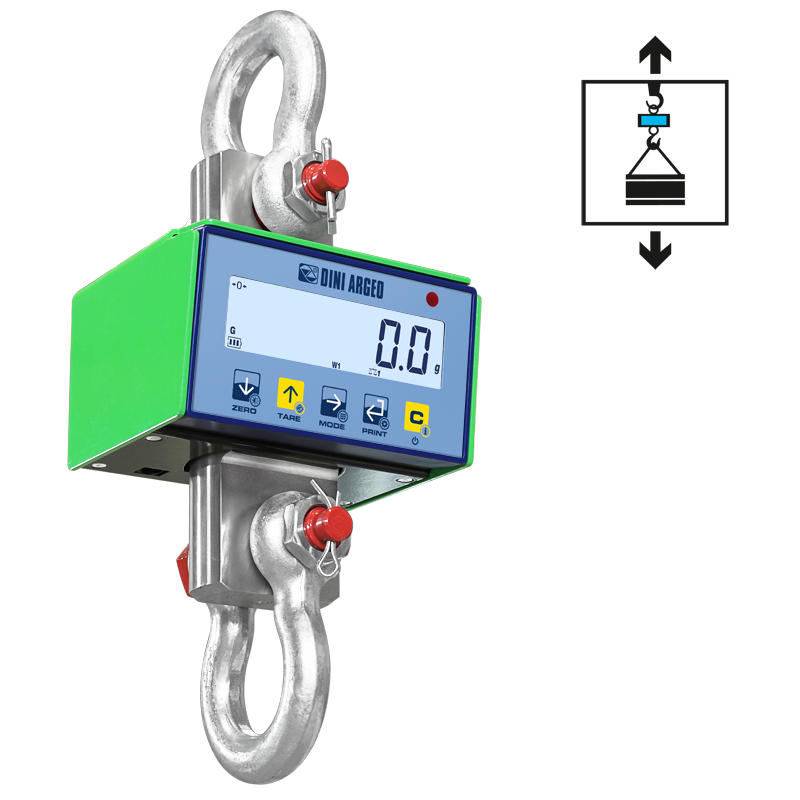

NINJA Series Crane Scales

• Single security system, for the lifting and the weighing of the load.
• In compliance with the directives 2006/42 CE, UNI EN 13155/2009, UNI EN 13889, 2014/30/EU.
• Fitted with the following upper and lower shackle:
  GR3 for MCWNT1
  GR6 for MCWNT3
  GR6 for MCWNT6
  GR9 for MCWNT9.
• Compact size and minimum distance between upper and lower shackle.
• 25 mm LCD backlit display, easily visible in any lighting condition.
• Precision: +/- 0.03% on MAX.
• 5-key waterproof keypad: Zero, semi automatic or preset Tare, Mode, Print, On/Off.
• Sturdy case in oven-fire painted steel.
• Fitted with infrared remote control for up to 8m distance use. The remote control can be configured by the customer as a single automatic tare or as a remote keypad.
• Power supply:
  - 4 AA batteries included as standard with 40 hour runtime, also compatible with rechargeable AA batteries.
  - Optional internal rechargeable battery kit.
• Digital calibration and programmable Set-Up directly from the keypad or from the PC with Dinitools.
• Programmable digital filter and auto switch-off.
• Operating temperature: -10 /+40 ºC.
• RS232 serial port on RJ11 connector for quick programming with Dinitools.
• Fitted with protective transport case with dimensions (WxLxH) 175x480x390mm

Options

• 2,4 GHz radio interface
• Bluetooth Interface

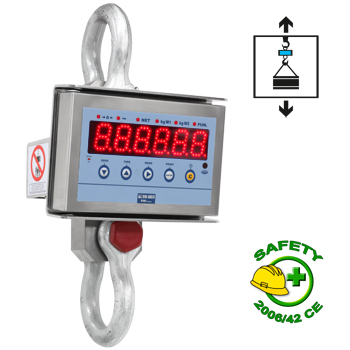

MCW09 Crane Scale Series

• Single security system, for the lifting and the weighing of the load.
• In compliance with the directives 2006/42 CE, UNI EN 13155/2009, UNI EN 13889, 2014/30/EU.
• Extremely bright large red DOT LED 40mm display, which guarantees a perfect visibility of the weight from any angle, also from a long distance with direct sunlight.Usable indoors as well as outdoors, great visibility also in full sunlight.
• Adjustable brightness intensity.
• Sturdy STAINLESS steel structure, with IP67 protection degree of the load cell and the electronics, against dust and sprays.
• Fitted with approved galvanised shackles:GR6 for MCW09T3
  GR6 for MCW09T6
  GR9 for MCW09T9
  GR12 for MCW09T12
  GR17 for MCW09T17
  GR25 for MCW09T25
  GR35 for MCW09T30
  GR55 for MCW09T50
• Extremely reduced distance between upper and lower shackles.
• Precision: +/- 0,05% on F.S. for 3T to 9T models
• Precision: +/- 0,1% on F.S. for 12T to 50T models
• 5-key waterproof keypad: ZERO, AUTOMATIC TARE, MODE, PRINT, and ON/OFF.
• Programmable digital filter, for an excellent weight display in any working condition.
• Programmable automatic switch-off function, either through keypad or remote control.
• Fitted with radiofrequency 6-key remote control, configurable as simple automatic tare or as a remote keypad.
• Configured for an 2,4 GHz radio interface or WiFi, for connection to PC or to a remote terminal and printer.
• Rechargeable battery, with an average life of about 30 hours.
• Configured for a second optional extractable battery for 24/7 continuous use.
• Fitted with 230Vac 50 Hz battery charger. EU, UK, US, AU plugs included as standard.
• Programmable digital calibration and Set-Up directly from the keypad or from PC through Dinitools.
• Operating temperature range: -10/+40 ºC.
