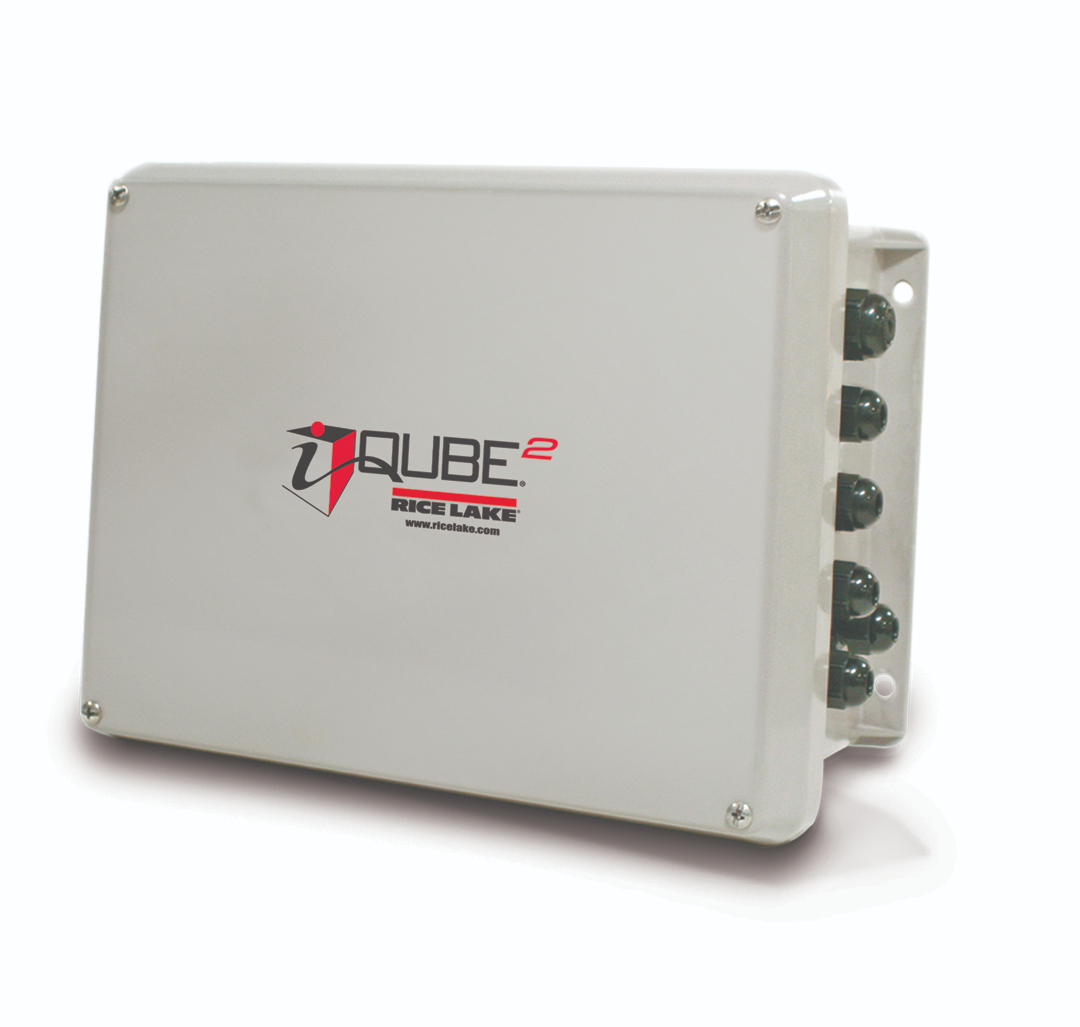

iQUBE²® Digital Diagnostic Junction Box

Standard Features

iQUBE^2® board has four A/D channels
Stainless steel or Fiberglass Reinforced Polyester (FRP), NEMA Type 4X enclosure
Supports networking up to four boards, for 16 A/D channels; connection can be up to four separate platforms with a system total, or four separate scale systems
Diagnostic routines for weighing errors and system health
Cell tests for overloaded, underloaded, zero reference, drift, noise and unbalanced conditions
Onboard status LEDs for communication and visual bi-color indication of cell health
Cell emulator compensates for load cell failure until a repair can be made
Cal-Match® algorithm automatically trims and calibrates the scale in one pass of test weights (stopping over each mount)
Standard communication RS-232/RS-422
Option card slot for fiber optic, Ethernet TCP/IP, wireless TCP/IP, USB or RS-232/485
Four digital I/O per card, for push-button operation, setpoint control or cell status

Applications

Truck and railroad scales
Tank and hopper scales
Multi-channel scales
Communicates to 920i®, 1280, VIRTUi²® and ASCII serial commands

Sales Literature

iQUBE²® is leading a new generation of digital junction boxes. At the forefront of iQUBE²'s cutting edge design are enhanced features that will redefine expectations for traditional analog to digital technology.

For mission-critical applications and unmatched performance, iQUBE² is the equipment of choice. Its high-speed ability to update up to 500 times per second on multi-channels makes it the fastest smart junction box available. Unmatched reaction time brings accuracy to new levels, increasing precision and profits.

Enhanced onboard diagnostics will identify noise, test for linearity and zero reference, and monitor drift. Diagnostics are enhanced by a unique load cell emulation feature which compensates for a failing load cell until a repair can be made.

iQube² Specifications

Enclosure:
Stainless steel or Fiberglass Reinforced Polyester (FRP), NEMA Type 4X enclosure

Voltage Input:
115/230 V AC power supply DC/DC converter for 9-36V
6-12 V DC to CPU

Load Cell Inputs:
Four channels per board up to four networked boards

A/D Sampling Rate:
2.5-500 Hz (selectable)

Temperature Range:
Certified: 14°F to 104°F (-10°C to 40°C)
Operating: -13°F to 140°F (-25°C to 60°C)
Storage: 14°F to 158°F (-25°C to 70°C)

Analog signal sensitivity:
0.3 uV/grad at 30 Hz
0.5 uV/grad at 100 Hz
1.2 uV/grad at 500 Hz

Load Cell Excitation:
5 V DC, 57 mA maximum per channel

Analog range:
-4.5 mV/V to 4.5 mV/V

Approvals:
NTEP 03-032A1
Measurement Canada - AM-5561, Rev. 1
UL E151461
CE

Warranty:
Two-year limited warranty

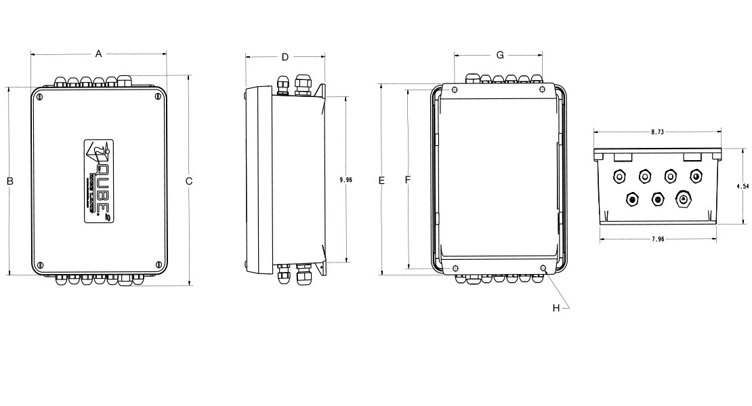

iQube Dimensions

Dimensions
Stainless Steel 8 x 10 in
A	8.91 in (226.3 mm)	E	11.50 in (292.1 mm)
B	10.13 in (257.3 mm)	F	10.75 in (268.5 mm)
C	12.57 in (319.3 mm)	G	6.00 in (152.4 mm)
D	4.29 in (109 mm)	H	0.312 in (7.9 mm)
FRP Large 10 x 12 in
A	11.30 in (287 mm)	E	13.53 in (343.7 mm)
B	13.33 in (338.6 mm)	F	12.76 in (324.1 mm)
C	14.00 in (355.6 mm)	G	8.00 in (203.2 mm)
D	5.57 in (141.5 mm)	H	0.312 in (7.9 mm)
FRP Small 8 in x 10 in
A	9.31 in (236.5 mm)	E	11.51 in (287.2 mm)
B	11.31 in (287.2 mm)	F	10.75 in (273.1 mm)
C	12.85 in (326.4 mm)	G	6.00 in (152.4 mm)
D	5.42 in (137.7 mm)	H	0.312 in (7.9 mm)
