This is a supervisory control and monitoring software for the automatic weighing, batching and mixing of Carbon, Chemical, Oil and Polymer.

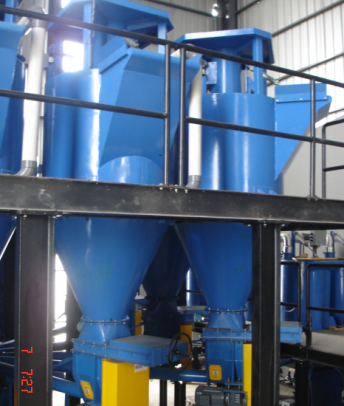

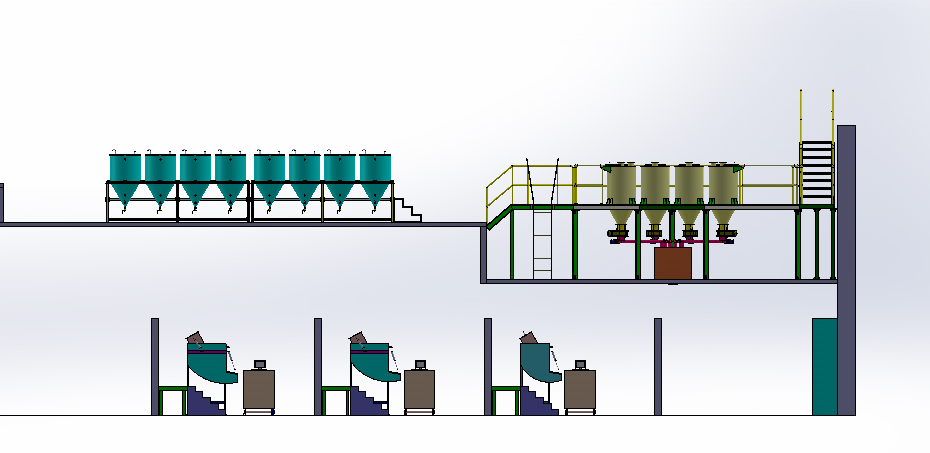

The System consists of individuals weighers for all the above four materials with associate feeders, valves and other mechanical / electrical accessories for the operation of the system.


The individual subsystems are controlled by distributed digital / analog I/O modules through centralized multiple process controllers connected in a network.


Parallel processing, of all raw material with necessary interlocks to avoid mixing of recipes, optional manual mode for Bar code scanners, Batch reports generation.
