RL5426D Compression Canister Load Cell

Digital canister load cells for CE-M approved weighbridges, tanks, silos, etc. Manufactured in STAINLESS STEEL, IP68 protection degree, 4000 divisions

Specifically developed for working without junction box.

CAPACITY: 40 Tonne

OIML R60. C4 precision class.

Stainless steel body. IP68 Protection Degree.

h= 150 mm.

Request More Information

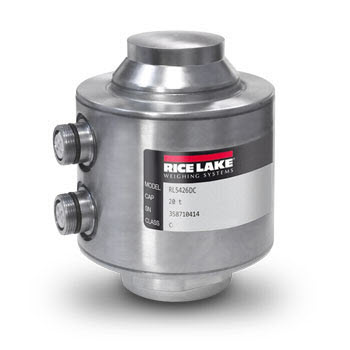

RL5426D Digital Compression Canister Load Cell

TECHNICAL FEATURES

Metrological Features

Rated capacity: (full scale) 40 Tonne
Combined error: 0,022 % full scale
Creep error (after 30 min.): 0,14 % full scale
Temperature effect on zero: 0,02 % full scale/10°C
Temperature effect on sensitivity: 0,01 % full scale/10°C
Non-linearity error: 0,015% full scale
Non-repeatability error: 0,006% full scale

OIML R60

Vmin= Emax/18000
Accuracy class: C4
Max. number of intervals: 4000e (EC Test Certificate, according to OIML R60 (2000))

Electronic/Mechanical Features

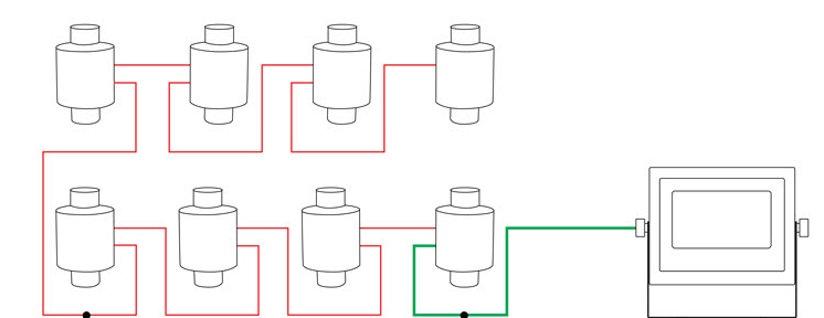

Interconnection without any junction box through double-connectors from load cells to weight indicator directly
Direct connections prevent manipulation of "weight data"
Stainless steel connections for anti-rodent protection
Lightening protection withstands up to 100000 amperes, ensuring operational continuity and system integrity even in extreme conditions
Gas dischargers to protect against atmospheric discharges
Half duplex RS485 communication technology
4-core RS485 cable as optional with stainless steel shield, diameter 7mm
System is equipped with anti-rotation, designed for self-alignment during weighments

Power Supply:
8...15 V (AC or DC)

Rated Digital Output:
40000 d

Current Consumption:
35 mA

Internal Resolution:
24 bit

Converter Rate:
max. 40 conv./sec.

RS-485 Communication Speed:
Max 100kHz.

Operating Temperature:
-35 ~ +70 °C

Compensated Temperature:
-10 ~ +40 °C

Storage Temperature limits:
-40 ~ 80 °C

Safe Load Limit:
150% F.S.

Ultimate Overload:
300% F.S.

Rating/Material:
IP68 protection degree
Stainless steel body

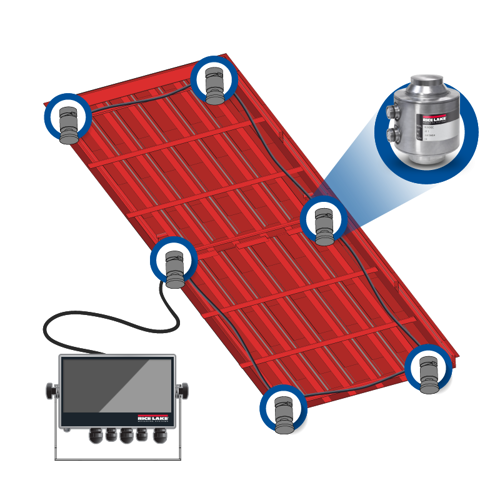

DIRECT CONNECTION TO SCALE TERMINAL

Cable Color Code
Red	EXC +
Black	EXC -
Green	A +
White	B -
Metal	SHIELD

INSTALLATION KIT

The kit allows a correct installation of the digital load cells below the weighbridge plate.
The kit consists of an upper cup and a lower cup with anti-rotation system. All components are made from stainless steel. Both cups are designed for optimal operation in conjunction with the cell’s self-centering spherical bases, allowing their proper oscillation and return to position.

Assembly Kits	Description
	Kit of 2 jointed cups for self-alignment, in stainless steel. For RL5426D load cells
Connection Cables	Description
	Load cell-to-Indicator connection cable. L = 25m
	Load cell interconnection cable. L = 4.5m
	Load cell interconnection cable. L = 7.5m

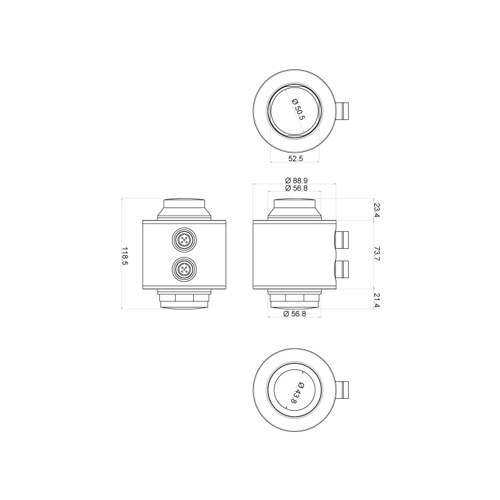

DIMENSIONS
