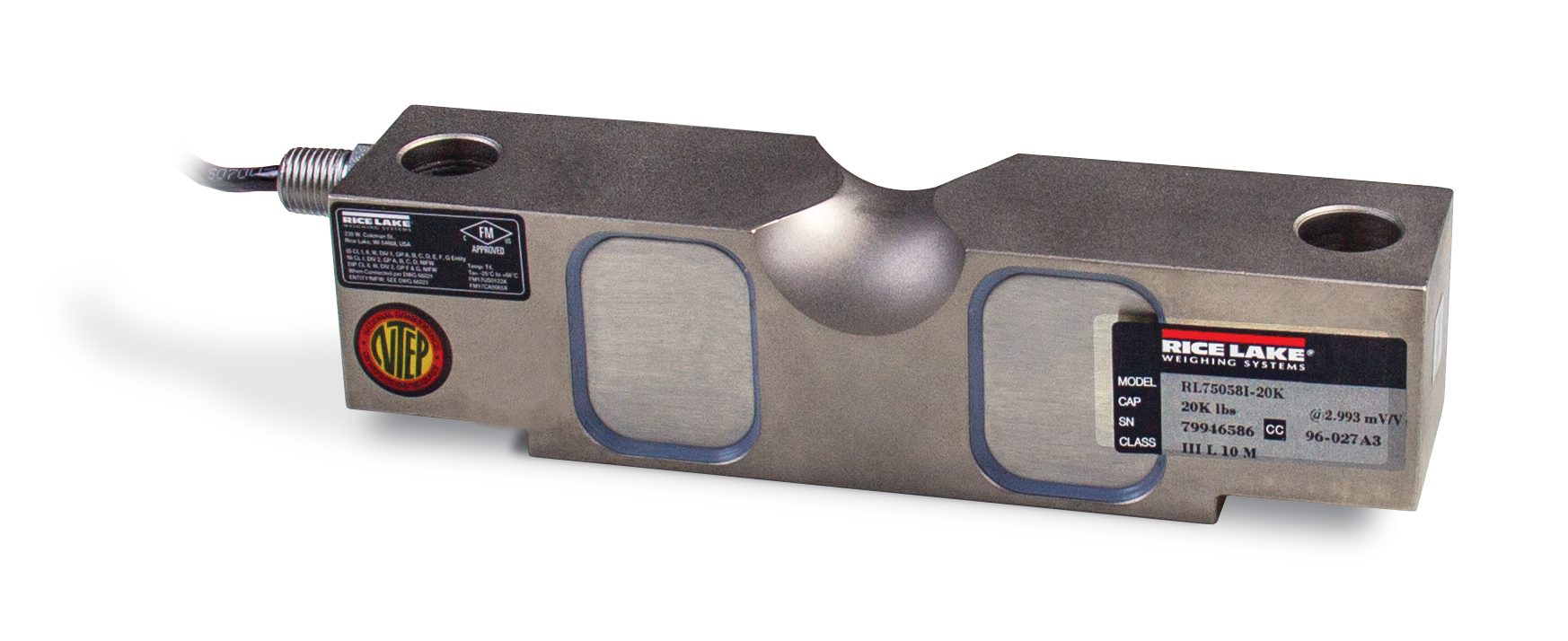

Rice Lake RL75058I for Coil Scale Load Cell

Nickel plated and environmentally sealed with stainless steel side plates. Used in the Rice Lake Weighing Systems coil scale. 20,000 to 75,000 lb, complete with 35 ft of load cell cable.

Request More Information

RL75058I Specifications

Full Scale Output:
3.0 mV/V

Output Resistance:
699 to 707 ohm

Input Resistance:
686 to 714 ohm

Material/Finish:
High-alloy steel, nickel plated

Temperature:
Compensated range
14 °F to 104 °F/-10 °C to 40 °C
Operating range
0 °F to 150 °F/-18 °C to 65 °C

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
35 ft

Cable Diameter:
20,000 lb: 0.200 in
40,000 to 75,000 lb: 0.305 in
Polyurethane jacket

Cable Coloring Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal

Warranty:
Two-year limited

Approvals:
cFMus
NTEP 98-143

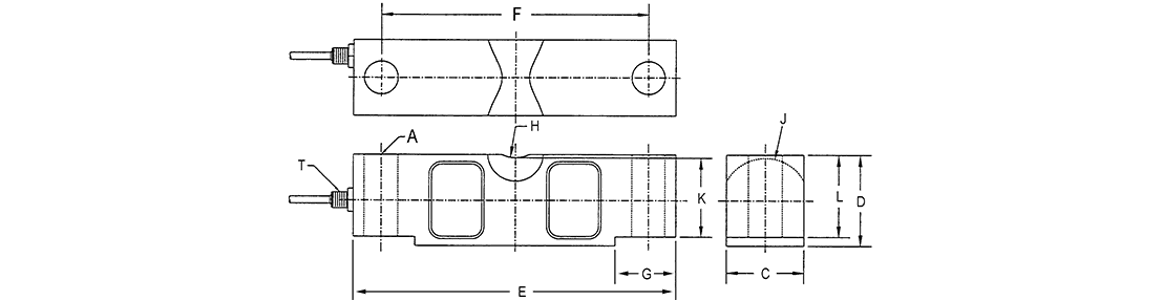

RL75058I Dimensions

Rated Capacity	A	C	D	E	F	G	H	J	K	L	T
lb/in
20,000 to 25,000	0.68	1.69	1.94	7.75	6.50	1.38	0.75	0.90	1.63	1.70	1/4-18 NPT
40,000	0.81	1.94	2.44	10.25	8.50	1.93	1.00	1.12	2.00	2.10	1/4-18 NPT
50,000 to 75,000	1.06	2.44	2.94	10.25	8.50	1.93	1.00	1.37	2.54	2.65	1/2-14 NPT
