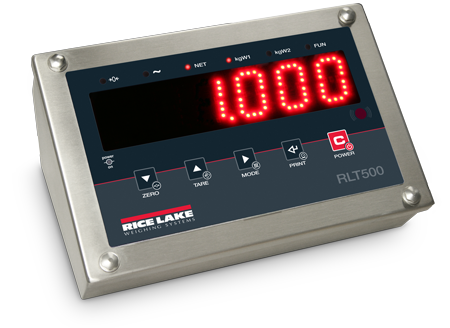

RLT500 Indicator with Large Very Bright Red LED

Standard Features

Waterproof 5-key functional keypad.
6 large and very bright 40 mm LED digits, easily visible from all angles and from
great distances, with an adjustable brightness intensity. The SMD technology guarantees
a high efficiency and brightness, also in full sunlight.
6 LED for indication of active functions.
Stainless steel case with IP68 protection against rain and dust, easy to clean and
resistant in harsh and corrosive environments.
Suitable for use on the table, or wall.
Dimenions 264 x 174 x 115 mm.
Up to 10.000e or multirange 3 x 3000e @ 0,3 V/e in CE-M approved version for
legal for trade use.
Up to 1.000.000 displayable divisions with internal resolution up to 3.000.000
points.
Up to 8 signal linearization points.
A/D 24-bit sigma-delta conversion, up to 200 conv./sec. autoselect.
Digital calibration and set-up from keyboard or from PC with DINITOOLS™
Power supply 110-240Vac or 6 Vdc through fitted built-in rechargeable battery.
Connection with up to 8 load cells with 350 Ohm input

Options

Specific programme (MSTSLV code) for use of the indicator as a universal weight repeater or as a multi-scale repeater (MASTER) in combination with DFW/DGT/ MCW. Multi-scale repeater (MASTER): function with allows to repeat up to 32 independent scales, with the possibility of managing their functions, or displaying and printing the sum of the weighs of all the scales.
UNIVERSAL weight repeater: function which allows to repeat the weight of any scales, through the configuration of the input

Digital weight indicator, with large and very bright and efficient, 40 mm red LED matrix display (SMD technology), easily visible from all angles, from long distances, and in full sunlight. Brightness intensity is easily adjustable through the software on a PC. Its high performance and available programmes make it
suitable for all industrial and commercial application.

RLT500 Indicator Specifications

Keyboard:
Zeroing, automatic tare, presettable tare, printing and /or data transmission, selectable function command, on/off
switching.

Selectable Functions:
High resolution weighing x 10, net/gross or lb/kg conversion, accumulation, formula
weighing, +/- checkweighing, percentage weighing, approved transmission of the weight to a PC/PLC or data recording on
MMC/USB (with Alibi memory ALMEM option), counting (max. resolution of 1.500.000 divisions)

Infrared 19-Key Remote Control:
Zero, tare/manual tare, enable/disable function, print, switch-off.

Radio Frequency 6-Key Remote Control:
Zero, tare, enable/disable function, print, switch-off.

Available Languages for Printing:
IT, EN, RE, DE, ES, PT, CN*, EL*

* For Chinese and Greek a programming of the printer/labeler is required (S1, only at the time of order)

I/O:
RS232/C port configurable for connection with printer/labeler, or for attached printer.
RS232/C (or optionally RS485) bidirectional port configurable for PC, PLC, remote display, and radio modem. Quick RJ RS232 plug connection.
